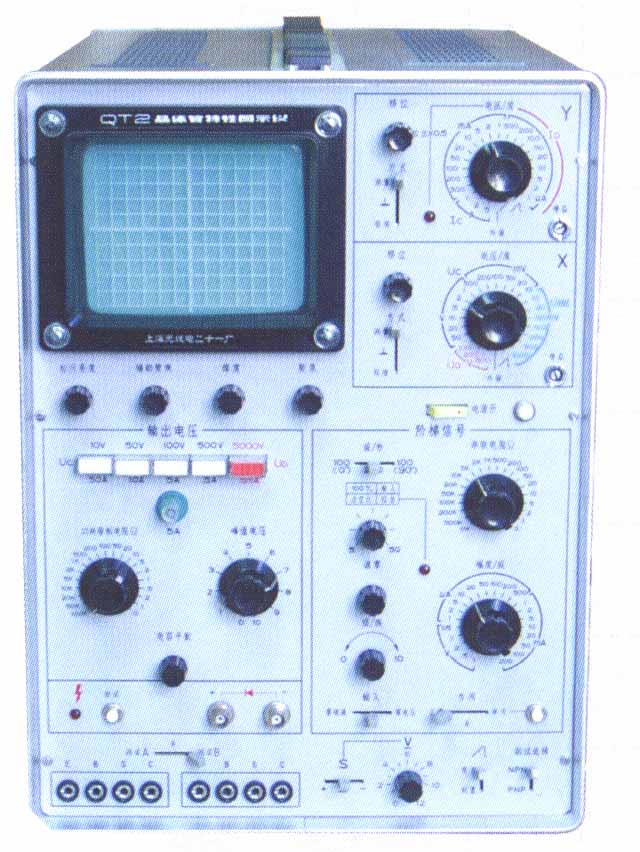

Transistor Curve Tracer

FEATURES

Measures LF DC parameters of diodes and triodes, max collector current up to 50A
Built-in HV test facility for measuring braekdown voltage and reverse leakage current of transistor under 5000V
Highest Sensitity 0.5μ/div
Steps signal and pulsed steps signal outputs for extending the measuring ranges and made a measurement of transistor's second breakdown characteristics

Specification

Y Axis
Collector Current	1μA/div～5A/div＜±3%，in 21 steps
Current Multiplier	×0.5＜±10%
Diode Leakage Current	1μA/div～500A/div＜±3%，in 9 steps
External Input	20mA/div, 1MΩ
X Axis
Collector Voltage	10mV/div～50mV/div＜±3%，in 12 steps
Base Voltage	10mV/div～1V/div＜±7%，in 7 steps
Diode Voltage Range	100V/div～500V/div＜3% in 3 steps
External Input	20mA/div, 1MΩ
STEP GENERATOR
Step Curret	1μA/step～200mA/step＜±3%，in 17 steps
Step Volage	0.05V/step～1V/step＜±5%，in 5 steps
Step Resistance	0-1MΩ,＜±10%，in 20 steps
Step Polarity	+ or -
Step Rate	×2, ×4 line frequency
Number of Steps	0-10 steps(continuously variable)
COLLECTOR POWER SUPPLY
Peak Voltage	0-500V(continuously variable)
Peak Current Range	0.5-50A
Power Limit Resistance	0-0.1MΩ,＜±10%，in 20 steps
CALIBRATOR
Calibration Voltage	0.1V,0.2V,0.4V,0.5V,1V＜±10%
CRT
Type	16 SJ101(P31)
Useful Screen Area	10×10div(1div=0.8cm)
OTHER
Power Supply	AC:220/110V,50/60Hz
Power Consumption	80VA approx.
Dimensions	300B×408H×520Dmm
Weight	30kg approx.
