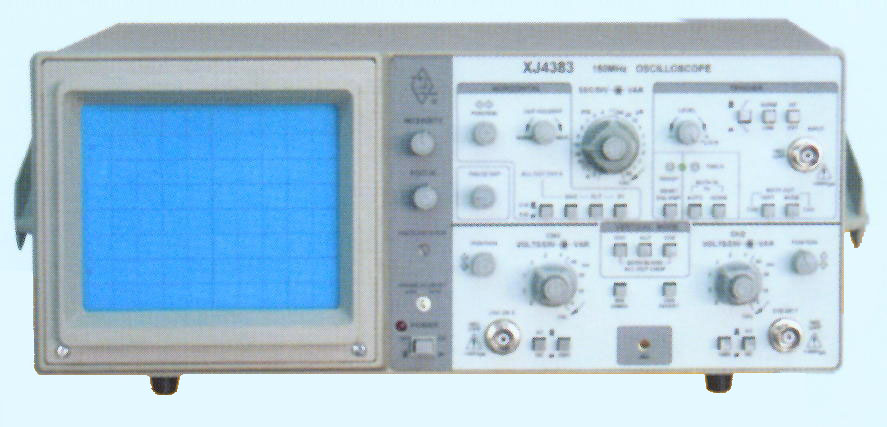

150MHz Dual Channel Four Trace Oscilloscope
Model XJ4383
|
Vertical system
|
|
| Bandwidth | DC-150MHz -3dB |
| Rise time | ¡Ü2.4nS |
| Deflection Factor | 5mV/div ~ 5V/div ¡À5% |
| Input R&C | 1M¦¸¡À5%, 22pF¡À5pF |
| Operation Mode | CH1, CH2, ALT, CHOP, ADD |
| Max input voltage | 400V (DC+ACp-p) |
|
Horizontal system
|
|
| Sweep time factor | 50nS/div~0.2S/div ¡À5% in 21steps |
| Max. sweep rate | 2.5nS/div |
| Trigger Mode | NORM, AUTO LOCK, TV |
| Trigger Source | INT(CH1 CH2), ALT(CH1 CH2), EXT Line |
| Trigger Slope | + or - |
| Horizontal Mode | x1, x10, x20, ALT, X-Y |
|
X-Y Operation
|
|
| Input | X:CH1 Y:CH2 |
| Bandwidth | X:DC 0~1MHz -3dB, AC 10Hz~1MHz -3Db |
| Y: the same as vertical | |
| X-Y Phase Difference | ¡Ü¡À3 ¡ã(150KHz) |
|
CRT
|
|
| CRT | rectangular CRT with internal graticule |
| Valid area | 8 x 10div (1div=1cm) |
|
Others
|
|
| Power supply | AC 220V ¡À10%, 50Hz¡À5% |
| Dimensions | 330B x 130H x 440D mm |
| Weight | approx. 8Kg |
