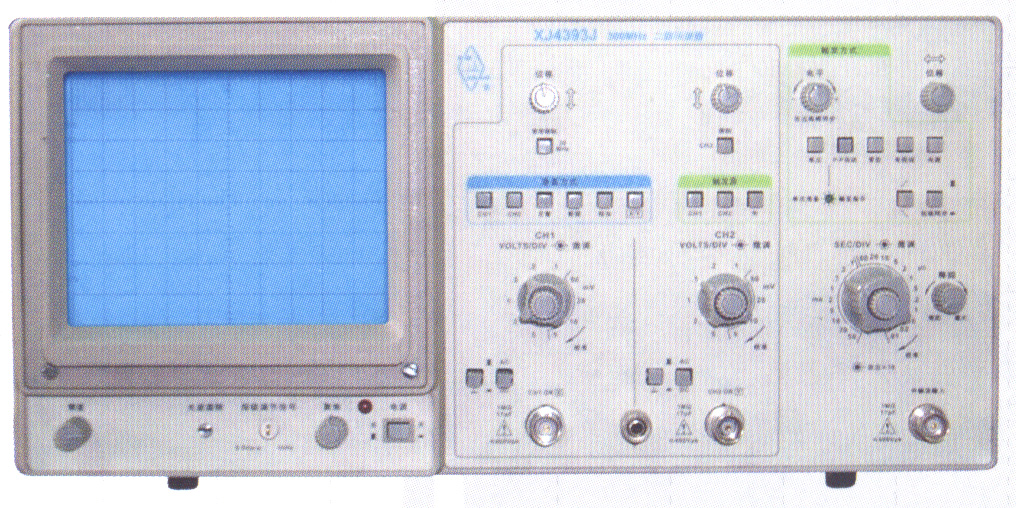

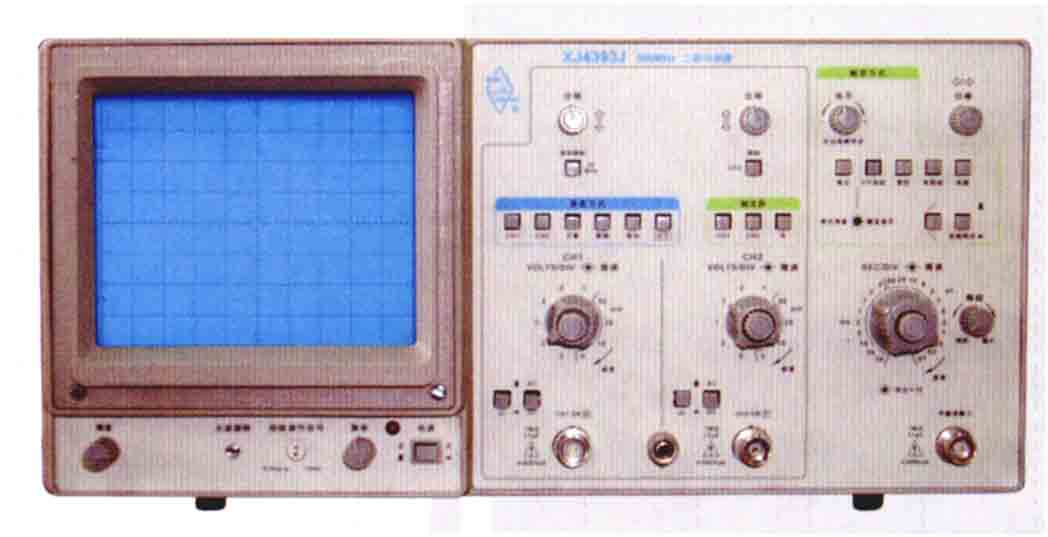

300MHz Dual Channel Oscilloscope

Model XJ4393J

Brief:

It provides a 300MHz bandwidth. which is suitable to obersve ultra-high speed pulse and anosecond(NS)signal. The instrument offers the functions, including good envelope synchro, ultra-high frequency synchro, auto trigger, TV synchro and single sweep, etc.

It is an ideal high frequency bandwidth oscilloscope with multi-functions and easy to use, which is applicable to the fields of the high speed electronic computer, the laser, the telecommunication and the nuclear physsics.

Specification

Vertical system
Bandwidth	DC-300MHz -3dB
Rise time	≤1.2nS
Deflection Factor	5mV/div ~ 5V/div in 10 steps
Input R&C	1MΩ±5%, 22pF±5pF
Operation Mode	CH1, CH2, ALT, CHOP, ADD
Horizontal system
Sweep time factor	10nS/div~50mS/div
Magnified Sweep	x10
Operation Mode	P-P AUTO, NORM, SINGLE, X-Y
Trigger Mode	P-P AUTO, ENVELOPE, HI-FREQUENCY, NORM,TV FIELD, SUPPLY SYNCHRO
Others
Useful Screen Area	8x10 div (1div=1cm)
Power supply	AC 220V ±10%, 50Hz±5%
Dimensions	330B x 155H x 480D mm
Weight	approx. 10Kg
